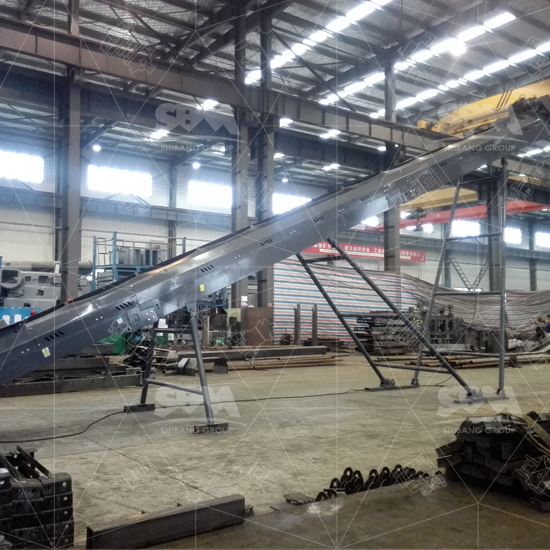

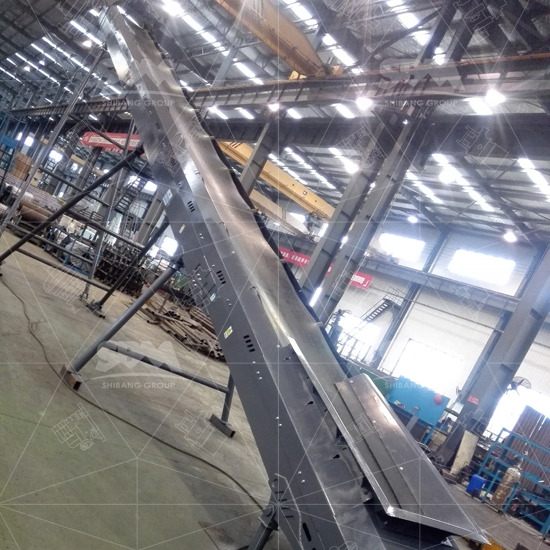

B6X Belt Conveyor adopts C-type steel as the main beam. It takes the modular structure and uses optimized headstock and tailstock. It is equipped with reversed V-type adjustable supporting legs. The whole machine is stable and compact and can be easily installed. It is an ideal upgrading and substitute product of traditional belt conveyor.
Generally, traditional belt conveyors uses channel steel and carrier roller frame with the rack relatively thin. B6X Belt Conveyor uses C-type steel to replace channel steel and equips side guard board. Based on this improvement, the overall rigidity of B6X Belt Conveyor's rack greatly increases.
Based on the feedback of users and installation engineers, the landing leg of traditional belt conveyors has a series of problems including poor stability, loose bolts and complex installation. Therefore, SBM adopts reversed splay landing leg in the design of B6X Belt Conveyor which has excellent stability. The combining use of three-link installation structure increases the stability. The installation procedures are greatly simplified due to the fact that there is no need for fastening with a large number of bolts.
Benefiting from the super-strong rigidity of B6X Belt Conveyor's rack, the use of long-distance headstock gets possible. Based on this design, the maximum radius of material pile is 1.5~2 times of that of traditional belt conveyors, which is very beneficial to material falling in the process of production and can effectively avoid the loader or other machines from clashing the holder when shoveling materials.
According to users' feedbacks, the electric drum used in traditional belt conveyors isn't suitable for high-power drive and always has trouble of heating which leads the short life expectancy. Sometimes it is difficult to replace the broken parts in the some foreign countries. Therefore, SBM adopts the cycloidal reducer with higher technical grade, which greatly enhances stability and is very convenient for maintenance and replacement.
