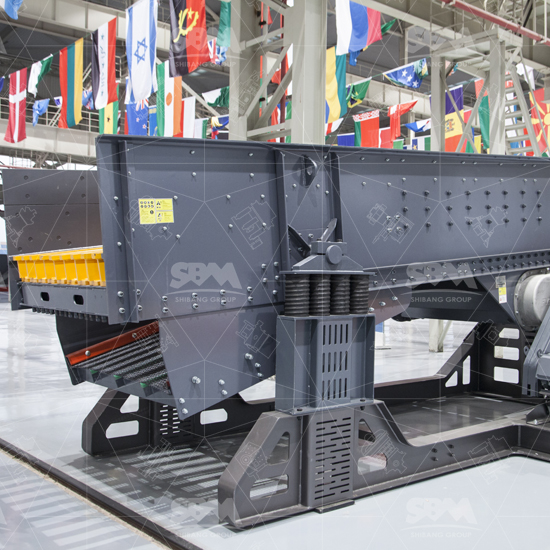

F5X Vibrating Feeder is designed for super-heavy operation condition. It has 4.5G of strong vibration intensity and extremely firm chute body structure. With 1600TPH capacity, 1.5m maximum feeding particle size and 25~45 m³ standard capacity of bin, it is able to bear 80 m³ compartment pressure, which adapts to heavy compartment pressure, high load and heavy impact and other similar poor conditions during the primary feeding operation.
Different from the light chute of traditional feeders which use 16# or 20# joist steel and box iron as the longitudinal beam, the super-heavy chute F5X Vibrating Feeder adopts large rectangular tube, able to hold high cabin pressure and strong shocks from falling materials and able to feed materials continuously.
Vibration intensity G-force is the key index to measure vibration machine's performance. The stronger it is, the larger operation capacity is. F5X Vibrating Feeder benchmarks international leading technologies and adopts advanced design philosophy and manufacturing technique. The vibration intensity is up to 4.5G, which is 30% larger than traditional devices. In the same specification, it has more operation capacity.
To satisfy higher performance and heavy load, repeated start-stop, frequency change and other poor conditions, F5X Vibrating Feeder is equipped with FV super vibrator just like a heart, which achieves reliable operation, convenient maintenance, interchange of components and high degree of commonality. The lubricating maintenance period is up to 1500 hours.

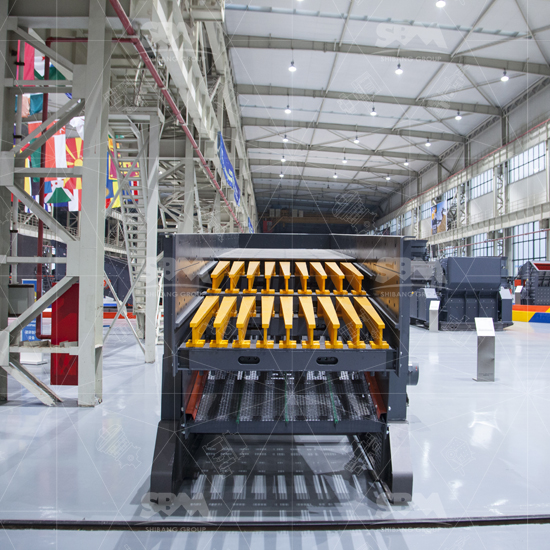

The rods are made of NM wear-resistant steel material which has long life expectancy and high screening efficiency. The installation is quite easy, too. The ladder structure formed by two sets of rods can screen out part of fine materials, so the load of primary crusher is reduced greatly.
We value your feedback! Please complete the form below so that we can tailor our services to your specific needs.
B6X Belt Conveyor adopts C-type steel as the main beam. It takes the modular structure and uses optimized headstock and tailstock. It is equipped with reversed V-type adjustable supporting legs. The whole machine is stable and compact and can be easily installed. It is an ideal upgrading and substitute product of traditional belt conveyor.
